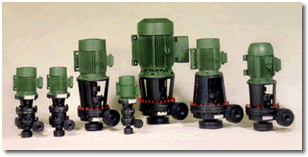

Our
centrifugal pumps operate by developing high flow speeds and turning
that speed into pressure in a decreasing flow rate. Its installation
is vertical and has a hydraulic seal system allowing the use of
the unit empty of fluid without causing damages because there
is no friction among its parts (like the mechanical sealed pump,
stuffing box, etc.)
We
also have an innovative centrifugal mechanical hydraulic seal,
that in addition to the characteristics of hydraulic seals it
also avoids leakage between the on and off action of the engine.
The construction of this seal is made in different kinds of materials
according to the fluid it will pump (Monel 400, Stainless Steel,
Titanium, etc.)
For the correct choosing of the material you need to bear in mind:
- the kind of fluid to pump, - flow, -temperature of the fluid,
-viscosity, -unload pressure, -anpa available.
Our equipment fits Chemical Industry, Petrochemical, Pharmaceutical,
Mining, Fishing, Leather, Paper, Food, Cosmetology, etc.
GENERAL CHARACTERISTICS:
Installation: Vertical.(look
installation
planes)
Component:
Polypropylene(look
up in the chemical resistances table)
Type
of Seal: centrifugal mechanical hydraulic or hydraulic seal
Maximun
Working Temperature: 100 ºC
